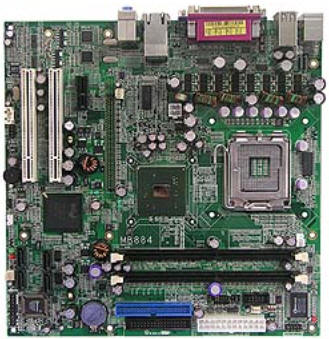

MB884 产品规格
特点
CPU Socket
LGA775
CPU
Intel® Pentium®4 processors
Up to 3.8GHz
CPU Front Side Bus ( FSB )
533MHz / 800MHz
Chipset
Intel®915GV + ICH6
L2 Cache
1MBCONTROL ENGINEERING China版权所有, CPU integrated
BIOS
Award BIOS, ACPI supported
System Memory
Two DDR sockets support up to 2GB DDR SDRAM
PC333/400 DDR SDRAM, without ECC
Integrated VGA
915G chipset built-in
Supports CRT interface
PCI Express Gigabit LAN
One or two Marvell 88E8053 PCI Express Gigabit LAN controllers
RJ-45 on board
Audio
ICH6 built-in audio + AC97 codec ALC655 (6
channels)
(Line out, Line, Mic jacks on board)
LPC I/O
W83627HF chipset supports IrDA x 1, Parallel x 1, COM1 (RS232), COM2 (RS232/422/485), FDC up to 1.44MB, Hardware Monitor
Serial ATA Interface
Four Serial ATA ports
IDE Interface
One enhanced IDE supports 2 IDE devices featuring UDMA33/66/100, PIO mode 4 and bus master
Serial Ports
Two RS-232 ports
• Supports LGA775 Pentium? 4 processors
• Up to 3.8GHz, 533/800MHz FSB
• DDR DIMM x 2, max. 2GB
• Two PCI Express Gigabit LAN with RJ-45 on board
• Watchdog timerwww.cechina.cn, Digital I/O, PCI to ISA Bridge
• 4 Serial ATA, 6 USB控制工程网版权所有, 2 serial ports
• 1 PCI Express x1, 2x PCI slots
USB
6 USB 2.0 ports (4 on board, 2 via pin header)
IrDA
Pin header
Digital I/O
4 in / 4 out
Watchdog Timer
Generates system reset; 256 levels
Hardware Monitoring
Built in W83627HF; monitors system/CPU temperature and voltage status
Expansion Slots
1 PCI Express x1, 2x PCI slots
Edge Connectors
PS/2 keyboard and mouse
VGA CRT
RJ-45
Audio phone jacks (speaker, line inwww.cechina.cn, Mic)
4 USB ports
Power Connector
ATX, 24-pin
Other Features
Modem Wakeupwww.cechina.cn, LAN Boot
Form Factor
Micro ATX
Dimensions
244mm x 244mm (9.6" x 9.6")
Power Consumption
TBD
Environmental Factors:
Operating Temperature:
0°C~60°C (32°F~140°F)
Storage Temperature:
-20°C~80°C (-68°F~176
